Reception Set R308

This is a communication receiver with facilities for the reception of C.W.
and amplitude or frequency modulated carriers are provided. The set may be used as part
of either a ground station or a vehicle station, being mounted in a rubber suspended
carrier to avoid damage from mechanical vibration. A built-in loudspeaker is fitted.
The frequency band of 20-45 Mc/s is covered in 5 ranges, selected by a switch as follows :-

Range 1 is 0-30 Mc/s.

Range 2 is 30-48

Range 3 is 48-75

Range 4 is 75-152

Range 5 is 112-145

The two I.F. frequencies of the receiver are 9.72 and 2â€¢t Mc/s.
Three degrees of selectivity are available giving bandwidths of 40, 60 and 20 kc/s.
The tuning dial is calibrated directly in Mc/s for each range with the
addition of a logging scale with 180 divisions.

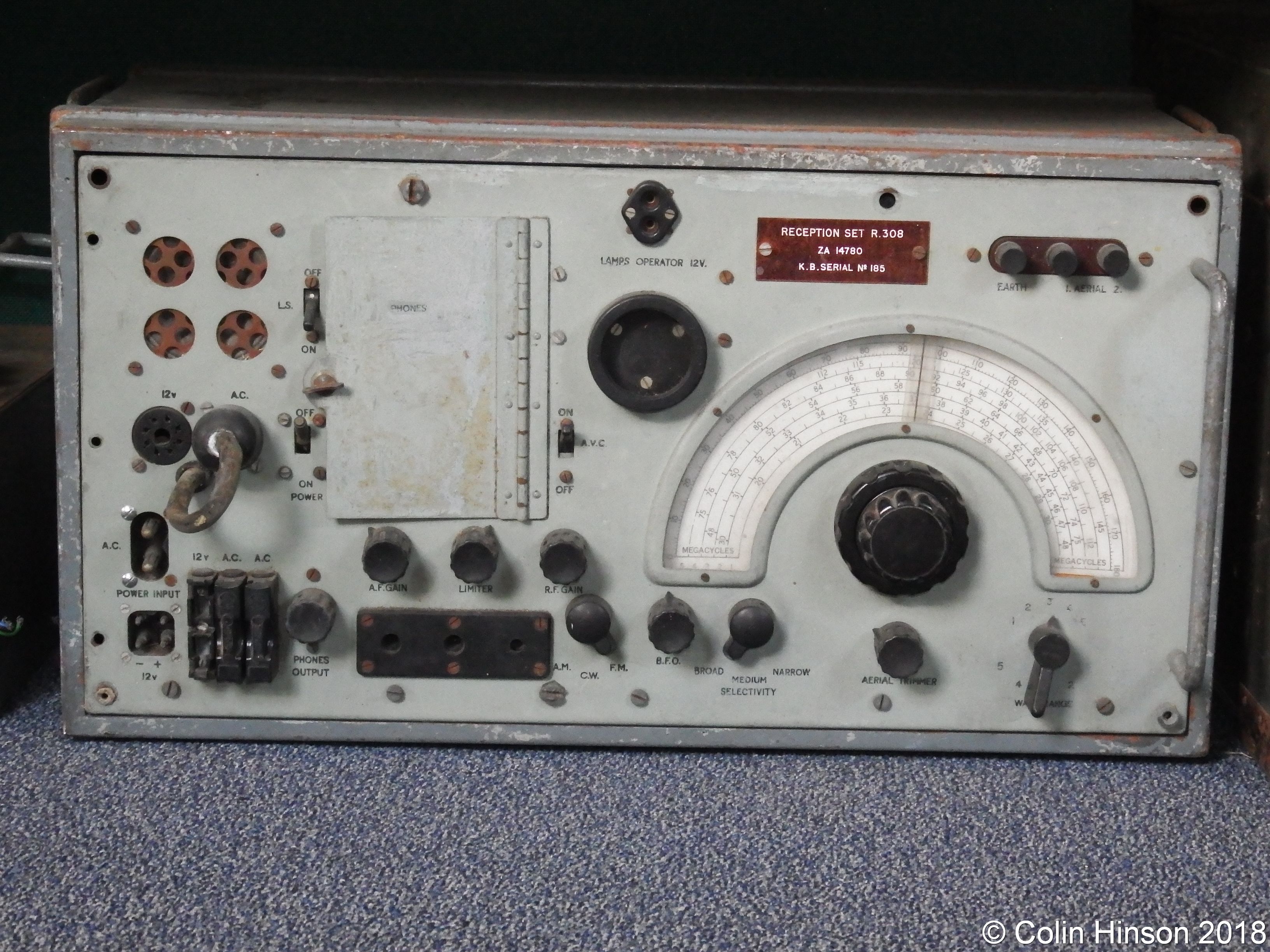

Receiver Type R308 (Photograph Number 0282)
